Genuine Xaar 502 GS15 S 360 Printhead XP50200011

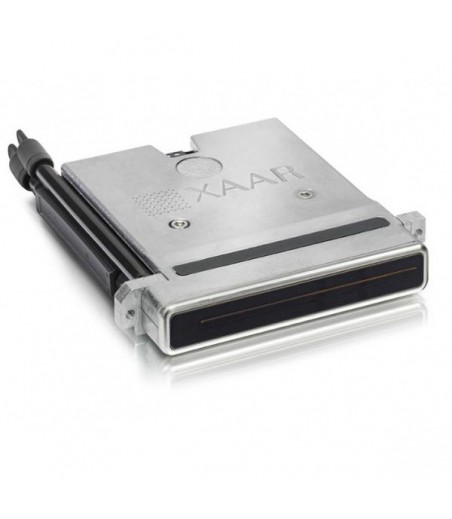

Xaar 502 GS15 S 360 Printhead XP50200011

The new Xaar 502 printhead reaches higher levels of performance in inkjet graphics. Whether printing large exterior banners or indoor point-of-sale material, this premium printhead delivers exceptional print quality, excellent reliability and high production up-time. Value added effects such as printing on transparent or coloured substrates or adding varnishes are made easy with the Xaar 502.

The new and unique PrecisionPlus™ architecture of the Xaar 502 builds on Xaar’s incredibly successful Hybrid Side Shooter™ architecture. This new architecture optimises the actuator performance giving more uniform drop formation across the print swathe and therefore exceptional print quality for stunning graphics.

PrecisionPlus architecture flips the PZT’s (Piezo actuators) supporting substrate on its side so the PZT is on the edge of a rigid block of substrate. This architecture means that there is more stiffness in the z axis (better support for the PZT).

The Xaar 502 GS15 S 360 is suitable for solvent-based printers with a vacuum (gravity) fed mode ink system. The last chance ink filter fitted on the inlet port avoids particules, debris or air bubbles get into the printhead.

The Xaar 502 GS15 S 360 has a WFG (wide format graphic) nozzle guard which is closer to the actuator providing protection from substrate damage. This nozzle guard wraps around the front of the actuator.

The Xaar 502 GS15 S 360 can be used as a replacement to Xaar Proton 35pl printheads (discontinued). An ICM (Interface connection module) enables Xaar Proton 35pl based printers to communicate with Xaar 502 printheads. The ICM requires a waveform loaded onto it by Xaar.

Specifications :
        Active nozzles : 500
        Print swathe width : 70,5mm
        Number of rows : 1
        Nozzle density : 180 Npi
        Nozzle Guard : WFG
        Ink types : Solvent
        Drop volume : 40pl
        Number of grey level* : 6
        Filter : Yes (Last chance filter)
        Heater : No
        TF Technology® mode : None
        Typical firing frequency @ Max DPD*: 7khz
        Dimensions (WxDxH) : 104 x 17 x 113mm
        Jetting orientation : Downshooter (see picture)
        Inlet / Outlet connections : Hose barb 4mm



Compatible Printers :

     Wit-Color
    Ultra 2000
