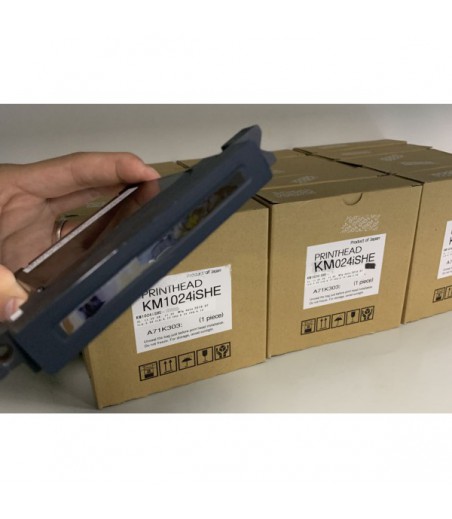

Konica KM1024i SHE 6PL Printhead

The Konica Minolta KM1024i SHE printhead is a robust, shear mode, piezo on-demand printhead featuring an All-nozzle Independent Drive System with a Multi-line Structure. In contrast with the existing 3-cycle system drive, an independent drive system that enables simultaneous emission from all 1024 nozzles has been adopted.

The Konica Minolta KM1024i SHE printhead offers a Maximum Drive Frequency of 60kHz, approximately 3 Times greater than that of the KM1024 Series, which makes it the ideal inkjet printhead for development of single-pass system inkjet printers capable of high-speed printing.

Specifications :
• Technology: Piezo Drop On-Demand
• Native Resolution: 360 dpi
• Cal. Droplet Size: 6 pl
• Max. Drops in Greyscale: 8 drops
• Tot. Amount of Nozzles: 1024 (256 nozzles per line)
• Print Width: 72 mm
• Typical Firing Frequency: 50 Khz
• Max Firing Frequency: 60 kHz
• Ink Compatibility: UV Inks
• Heater: integrated
• Dimensions: W131mm x D18mm x H94mm
• Weight: Approx. 150g

Printer compatibility :

   Allwin S320UV
   Allwin S500UV
   Allwin UVT 2030
   Allwin UVT 2512
   Allwin UVT+ 2030
   Allwin UVT+ 2512
   Docan H1000
   Flora HJ 5000UV
   Human Digital Technology M-JET
   IIJ ColourPrint-72
   JHF Vista R3300
   JHF Vista R6000
   JHF Vista V300UV
   JHF Vista V500UV
   Optimum Digital KR Hybrid UV
   Skyjet FT2512i
   Skyjet FT3020i
   Taimes T50UV
   Yicong YD2512-KD
