Original Kyocera Inkjet Printhead KJ4B-0300-G

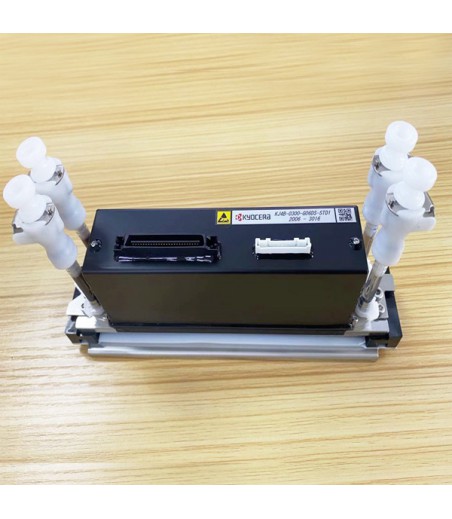

Kyocera Inkjet Printhead KJ4B-0300-G

Kyocera Inkjet Printhead KJ4B-0300-G Kyocera Print Head

This Kyocera KJ4B-0300 G type is designed for high speed single-pass applications with printers using aqueous ink. It is a 300dpi two colours printhead with a maximum drive frequency of 30kHz. It delivers high quality with a small drop volume of 5pl at 120 m/min by making use of 2,656 nozzles arranged across 112 mm wide print swathe.

Specifications :

    Ink Type:  Aqueous Ink
    Dimensions: 200 × 36 × 68.5mm
    Dry Weight: 540g
    Total Nozzles:2.656
    Standard Resolution: 300 x 300dpi
    Print Width: 112mm
    Max. Drive Frequency: 30kHz
    Drop Volume: 5, 7, 12 and 18pl
    Max. Sprint Speed: 120m/min
    Typical ink viscosity: 5.0-6.0 mPa

Printer compatibility :

     Printerevolution T1800
     Printerevolution T2600
     Printerevolution T3200

   FabriVu 340

KJ4B-0300
