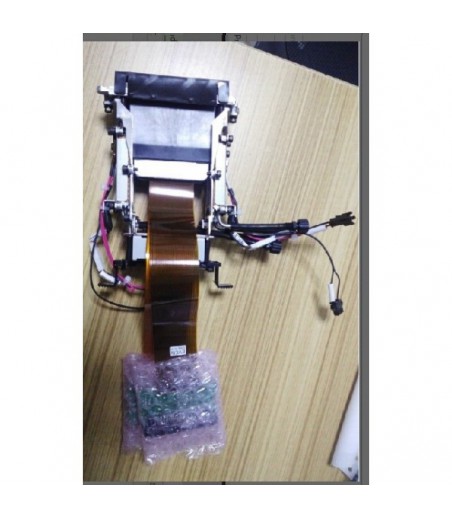

Mimaki JFX200 Printhead M017004 Mimaki Print Head

This printhead GEN5 is suitable for Mimaki JFX200-2513 printers. It has two and four colour support, 8 levels of grayscale and up to 600 npi nozzle density. This is the original Mimaki part (number M022625 replacing M017004 and M015028).

Product Specifications :

    Dimensions: 89 x 25 x 69 mm (excluding cables)
    Head materials: SST, Nickel alloy and Epoxy Adhesive
    Nozzle plate surface: Coated SST
    Number of nozzles: 4 x 320 nozzles
    Nozzle spacing: 0.1693 mm
    Nozzle density: up to 600 npi
    Piezo yype: D33 Stacked PZT
    Temperature control: Integrated Heater and Thermistor
    Operator temperature range: Up to 80° C
    Native drop volume: 7 pl
    Drop volume range: 7 - 35 pl
    Drop velocity: 7 m/s
    Jetting frequency: Up to 60 kHZ
    Life: 100 billion actuations per nozzle

Printer compatibility :

   Mimaki JFX200-2513

M017004
