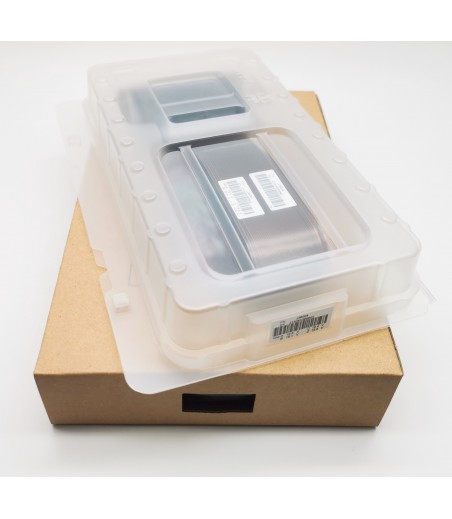

Ricoh MH5420 GEN5 Printhead Water (500mm) - J36004 / N221414D
This Ricoh GEN5 water printhead with a total length of 500mm is suitable for a range of water-based printers. It supports up to 2 colours and has a total of 1.280 nozzles. It is built with longevity and robustness in mind and used in the latest industrial inkjet printers. This is Ricoh original printhead and it is covered by a manufacturer warranty.
This Ricoh GEN5 is 500mm long in total (head body + cable + connectors). Head cable is 400mm long.
Product Specifications :
Dimensions: 89 x 25 x 69 mm (excluding cables)
Head materials: SST, Nickel alloy and Epoxy Adhesive
Nozzle plate surface: Coated SST
Number of nozzles: 4 x 320 nozzles
Nozzle spacing: 0.1693 mm
Nozzle density: up to 600 npi
Piezo yype: D33 Stacked PZT
Temperature control: Integrated Heater and Thermistor
Operator temperature range: Up to 80° C
Native drop volume: 7 pl
Drop volume range: 7 - 35 pl
Drop velocity: 7 m/s
Jetting frequency: Up to 60 kHZ
Ink compatibility: Water Inks
Life: 100 billion actuations per nozzle
Printer compatibility :
ATP Color DFP1320
ATP Color DPP740 G5
DIP J4
Hollanders ColorBooster 230
Hollanders ColorBooster 250
MTEX Turbo Sub
Ricoh MH5420 GEN5
